Product Description
- Product Introduction:
-
- The KOLSOL F02 Pro is an underground wire locator which is designed to locate the path of non-energized wires behind & in walls and underground. It allows the users to track low voltage cables used for garden, landscape automatic watering systems and low voltage garden lighting systems. It is also used to trace other metal cables. The detection depth range is 2 feet and the max cable length is 2000 feet. Moreover, KOLSOL F02 pro is also capable of locating a specific circuit breaker, pinpointing wires before drilling and verifying dig sites underground.
- Product Features:
-
- 【Time and Money Saver】Locating & tracking buried and hidden wires. No more calls, no more cost, find and fix it by yourself. Equipped a pair of 3.5mm earphones that can be connected to the the receiver earphone jack to improve efficiency in a noisy environment.
- 【Range of Parameters】Wire tracer range-Up to 3-4 feet deep and 2000 feet in length.
- 【Rechargeable Lithium Battery】The transmitter and receiver are both powered by the 3.7V rechargeable lithium battery, both with low battery indicator.
- Product Functions:
-
- 【Basic Functions】Locating and tracking buried & hidden wires, detecting cable break, locating alarm, sound & computer wires, measuring wire depth, and pinpointing drill sites.
- 【External Earphones】Equipped a pair of 3.5mm earphones that can be connected to the the receiver earphone jack to improve efficiency in a noisy environment.
- 【White LED Flashlight & Power Supply】Designed with white LED flashlight for auxiliary lighting in the darkness. The transmitter and receiver are both powered by the 3.7V rechargeable lithium battery, both with low battery indicator.
- 【Where You Can Locate】Locate-Determining Which Receptacles are on specific circuits, track-Pinpointing Drill Sites before drilling.
-
- Warm Tips: Do not use it on live circuits because it will damage the Tester! This device is mainly to locate non-energized cable, or low-voltage situation less than 24V. Only for Wires & Cables,Not for Sprinkler Valves!!
Product Introduction:
The KOLSOL F02 Pro is an underground wire locator which is designed to locate the path of non-energized wires behind & in walls and underground. It allows the users to track low voltage cables used for garden, landscape automatic watering systems and low voltage garden lighting systems. It is also used to trace other metal cables. The detection depth range is 2 feet and the max cable length is 2000 feet. Moreover, KOLSOL F02 pro is also capable of locating a specific circuit breaker, pinpointing wires before drilling and verifying dig sites underground.
Product Features:
【Time and Money Saver】Locating & tracking buried and hidden wires. No more calls, no more cost, find and fix it by yourself. Equipped a pair of 3.5mm earphones that can be connected to the the receiver earphone jack to improve efficiency in a noisy environment.
【Range of Parameters】Wire tracer range-Up to 3-4 feet deep and 2000 feet in length.
【Rechargeable Lithium Battery】The transmitter and receiver are both powered by the 3.7V rechargeable lithium battery, both with low battery indicator.
Product Functions:
【Basic Functions】Locating and tracking buried & hidden wires, detecting cable break, locating alarm, sound & computer wires, measuring wire depth, and pinpointing drill sites.
【External Earphones】Equipped a pair of 3.5mm earphones that can be connected to the the receiver earphone jack to improve efficiency in a noisy environment.
【White LED Flashlight & Power Supply】Designed with white LED flashlight for auxiliary lighting in the darkness. The transmitter and receiver are both powered by the 3.7V rechargeable lithium battery, both with low battery indicator.
【Where You Can Locate】Locate-Determining Which Receptacles are on specific circuits, track-Pinpointing Drill Sites before drilling.
Warm Tips: Do not use it on live circuits because it will damage the Tester! This device is mainly to locate non-energized cable, or low-voltage situation less than 24V. Only for Wires & Cables,Not for Sprinkler Valves!!

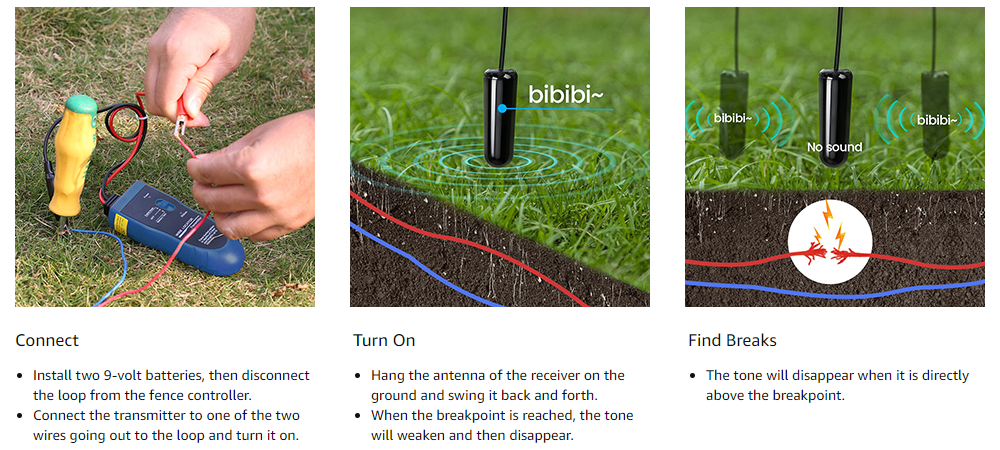

How to Use KOLSOL F02 Pro
Easily Locate Pet Fence Wires, Metal Wires, Metal Pipes, Electrical Wires, ect ( only for single-strand wire, or double-strand wire in parallel, not for multistrand wire!!!)
Product Specifications:
| Manufacturer |
KOLSOL |
| Color |
Blue |
| Part Number |
F02 Pro |
| Item Weight |
1.92 pounds |
| Package Dimensions |
14.17 x 5.98 x 1.93 inches |
| Batteries |
1 Lithium Metal batteries required. (included) |
| Material |
Plastic |
| Batteries Included? |
Yes |
| Batteries Required? |
Yes |
| Battery Cell Type |
1100mAh Lithium Ion |
Transmitter:
Tone Frequency: 200kHz
Max. Length Distance: 800m / 2400ft
Max. Depth Distance: 60cm / 24in
Max. Working Current: Less than 70mA
Max. Signal Voltage: 15Vp-p
Signal Display: Tone
Power Supply: 1 * 3.7V 1100mAh lithium battery
Transmitter Size: 134 * 49 * 33mm / 5.28 * 1.93 * 1.30in
Transmitter Weight: 93g / 3.28oz
Receiver:
Frequency: 200kHz
Max Working Current: Less than 70mA
Earphone Jack: 1
Power Supply: 1 * 3.7V 1100mAh lithium battery
Receiver Size: 163 * 40 * 27mm / 6.42 * 1.57 * 1.06in
Receiver Weight: 119g / 4.20oz

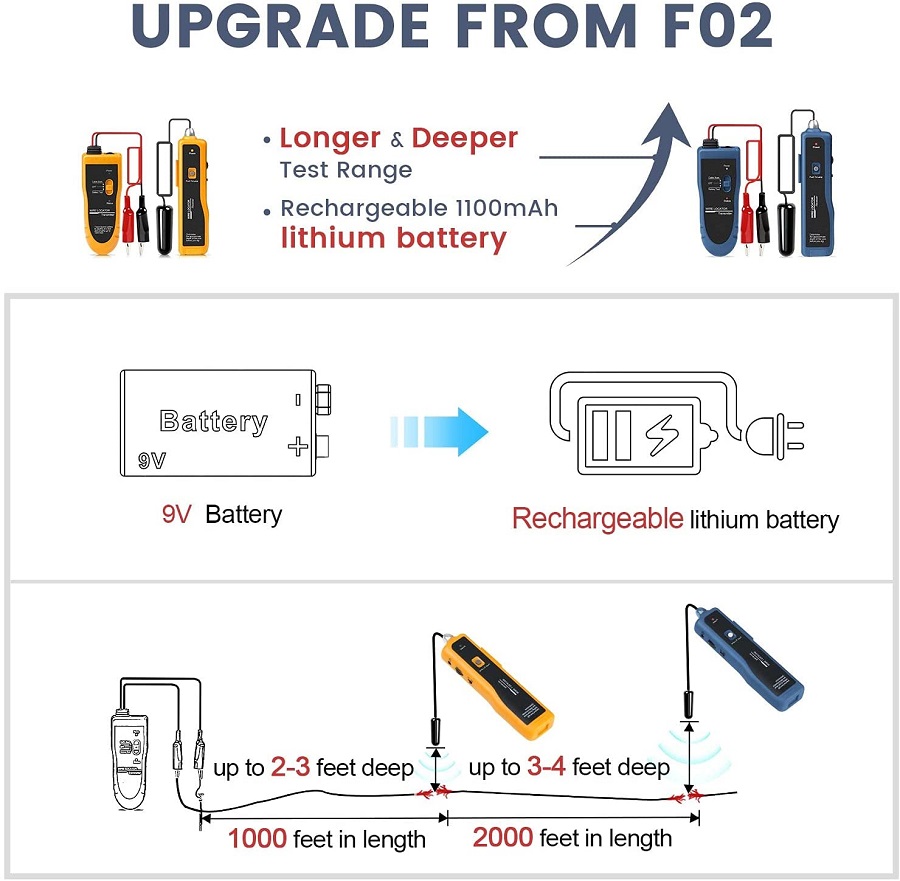

Product Comparison Chart:
| Product Name |
|
|
| Product Picture |
 |
 |
| Depth |
3-4 feet |
2-3 feet |
| Length |
2000 feet |
1000 feet |
| Battery |
Rechargeable 1100mAh battery |
9V batteries
|
Package Includes:
1pc x Transmitter
1pc x Receiver
1pc x Earphones
1pc x Pouch
1pc x Manual (English)
